Info:
Item No.:RY17-03
1.Introduction

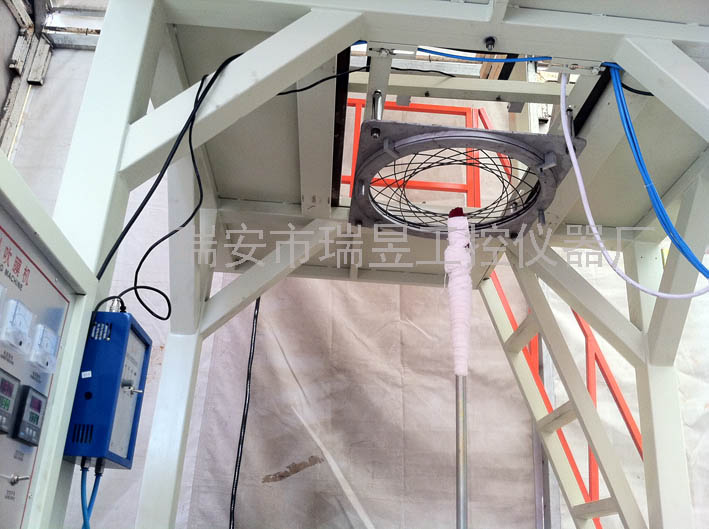

This product adopts infrared sensor detection,it should automatic detection the film size which simply mountedthe
sensor on the outside of film.Due to adoption noncontact method to detect the film size,so it is not easy to damage
and with high accuracy even though it working perennially,it is simple to install and operate with builtin electromagnetic
value and throttle valve (airflow control value),it is the ideal product in film blowing industry and the best choice for
replacement.
This controller increased deflation function on the basis of ZLJ3,when the error of bubble diameter above 0.6mm，it can automatic aeration and deflation which make the film size rest on the setted value and make the film roller ends
neatly,using button to adjust sensitivity automatically.
2.Parameters specification
1、Distinguishability：＜0.05mm
2、Aeration start delay time :0.5s
3、Aeration closed delay time:＜0.1s
4、Alarm start delay time :3s
5、Pore size :0-3mm adjustable
6、Working air pressure :0.01-0.8Mpa
7、Working voltage:～200-240V\50-60Hz
8、Power:30W
9、Body weight:2.2KG
10、Body size:240*165*85mm（L*W*H)
